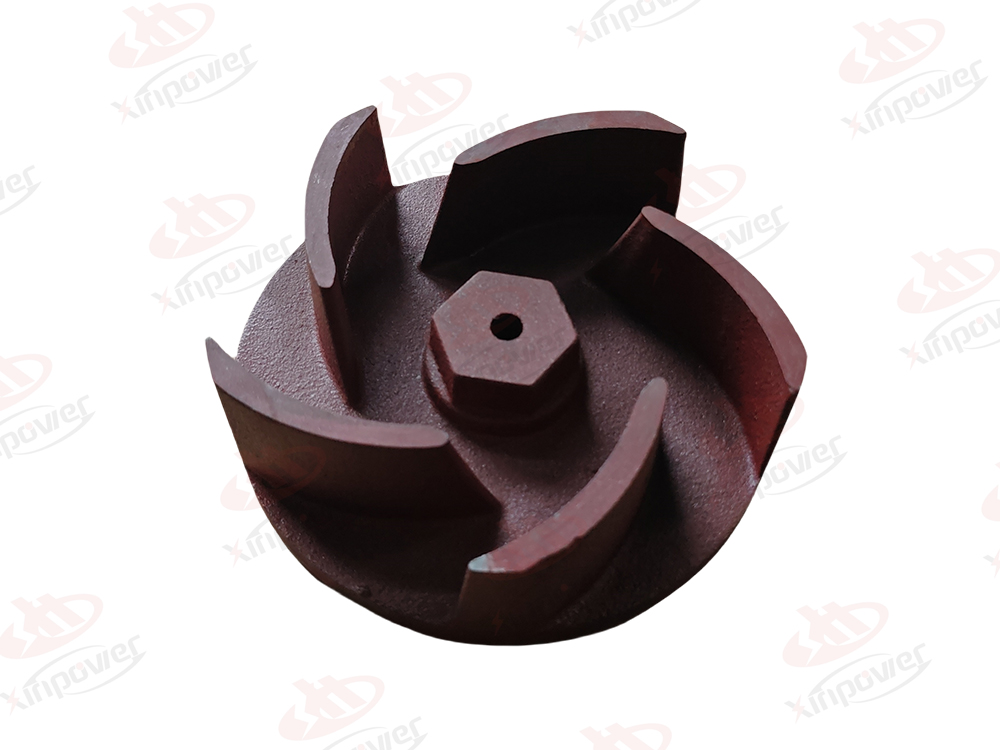

Clean Water Pump impeller

Product introduction

The Clean Water Pump Impeller is a key component in the clean water pump (Centrifugal Water Pump). It is responsible for sucking water from the pump inlet and accelerating the water flow through the rotation of the blades, generating enough pressure to transport it to the pump outlet. The design of the impeller directly affects the performance of the water pump, such as flow, head, energy efficiency and service life. Therefore, the material, structure, design and manufacturing process of the clean Water Pump Impeller are crucial to the working effect of the entire pump system. The application range of the clean water Pump Impeller is very wide, and it is commonly used in industry, agriculture, construction, household water supply, pool water circulation, swimming pool filtration and other fields.

1. Working principle of clean water pump impeller

The working principle of clean water pump impeller is based on centrifugal force. When the water pump is started, the impeller starts to rotate and water enters the center of the impeller from the suction port of the pump. Through the rotation of the impeller, the water is accelerated and thrown outward along the blades of the impeller. As the water flows out from the periphery of the impeller, the kinetic energy of the water flow is converted into pressure, which pushes the water flow into the pump body outlet to complete the water flow delivery.

Water flow intake: water enters the center of the impeller from the pump inlet.

Acceleration process: when the impeller rotates, the water is thrown to the periphery and accelerated by centrifugal force.

Water flow discharge: water flows out through the pump outlet to complete the delivery task.

The design of the clean water pump impeller is usually optimized according to the required flow rate, head and the use environment of the water pump to achieve efficient fluid delivery and low energy consumption.

2. Material selection of clean water pump impeller

The material of the clean water pump impeller directly affects its corrosion resistance, wear resistance, strength and service life. Common clean water pump impeller materials are:

(1) Stainless steel impeller

Stainless steel impellers have very good corrosion resistance, high temperature resistance and strength, and are suitable for water pumps in high-demand environments, especially water pumps that need to handle clean water containing corrosive substances or work in high-temperature environments.

Advantages: corrosion resistance, high temperature resistance, wear resistance, and adaptability to harsh environments.

Applicable occasions: chemical industry, seawater pumps, water treatment, oil and gas industry, etc.

(2) Cast iron impeller

Cast iron impellers are usually used for clean water pumps with large flow and low to medium head. They have high strength and good wear resistance and are suitable for general clean water pump applications.

Advantages: excellent mechanical properties and economical price.

Applicable occasions: industrial water pumps, building water supply, cooling water systems, etc.

(3) Aluminum alloy impeller

Aluminum alloy impellers are suitable for small clean water pumps due to their light weight, corrosion resistance, and easy processing, especially in situations where weight requirements are more stringent.

Advantages: light weight, corrosion resistance, and good thermal conductivity.

Applicable occasions: small pumps, household water supply, agricultural irrigation, etc.

(4) Plastic impeller

Plastic impellers are usually made of polymer plastics (such as polypropylene, polyethylene, etc.), with excellent corrosion resistance and light weight, and are suitable for treating relatively clean, impurity-free water sources.

Advantages: corrosion resistance, light weight, and economical.

Applicable occasions: household pumps, swimming pool pumps, gardening irrigation, etc.

(5) Copper alloy impeller

Copper alloy impellers have strong corrosion resistance, especially in seawater and weak acidic environments. The excellent mechanical properties and oxidation resistance of copper alloys make them used in certain specific occasions.

Advantages: excellent corrosion resistance, oxidation resistance, suitable for seawater or strong acidic environments.

Applicable occasions: marine water pumps, chemical treatment, etc.

3. Design types of clean water pump impellers

There are many types of clean water pump impeller designs. According to the shape of the impeller and the direction of fluid flow, they are mainly divided into the following types:

(1) Closed impeller

In the closed impeller design, the impeller blades are closed by two end covers. This design has high efficiency and can effectively prevent impurities in the water flow from entering the impeller.

Advantages: high efficiency, wide application, and strong durability.

Applicable occasions: large flow and large head water pumps.

(2) Open impeller

The blades of the open impeller have no end covers, and the water flow can directly enter the impeller. Since there is no end cover, this impeller is suitable for treating water sources containing particulate impurities, but its efficiency is slightly lower.

Advantages: suitable for water with high impurity content and easy maintenance.

Applicable occasions: sewage pumps, impure water sources.

(3) Semi-Open Impeller

The semi-open impeller has an open design and usually has an end cover at one end of the impeller. It is between the open and closed impellers in terms of efficiency and is suitable for both clean water and certain impurities.

Advantages: strong adaptability and simple maintenance.

Applicable occasions: mostly used in Water Pump Systems with medium conditions.

(4) Vortex Impeller

The vortex impeller design uses a special blade shape that can produce a vortex effect and is suitable for removing water sources containing solid impurities.

Advantages: It can handle water sources containing solid particles and prevent blockage.

Applicable occasions: sewage pumps, drainage pumps.

Maintenance and care of the impeller of the clean water pump

In order to ensure the normal operation of the clean water pump impeller and extend its service life, regular maintenance and care are very important. The following are common maintenance methods:

Clean the impeller regularly: remove sediment and impurities on the surface of the impeller to keep the impeller operating efficiently.

Check the wear of the impeller: Check the wear of the impeller regularly, especially after long-term operation. If the blades are found to be severely worn, they should be replaced in time.

Keep the impeller balanced: ensure that the impeller remains balanced during operation to avoid vibration and damage caused by imbalance.

Check the bearings and seals: Check whether the bearings and seals inside the pump body are intact to avoid the performance of the pump being reduced due to component damage.
