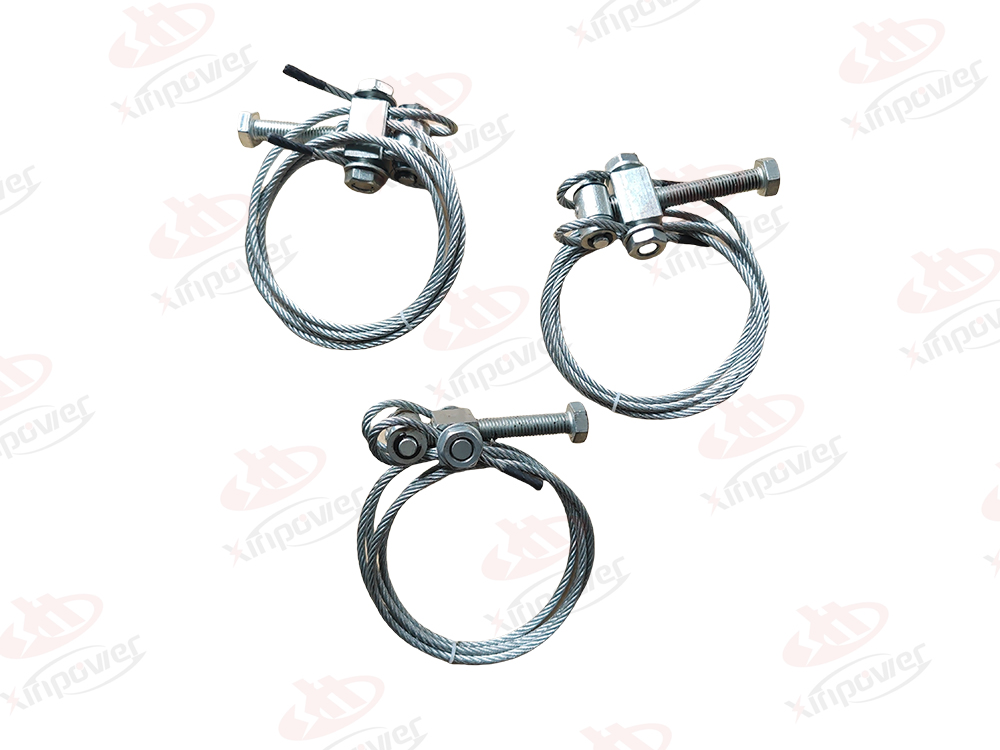

Wire rope assembly

Product Introduction

Wire Rope Assembly is an integrated device consisting of wire rope and its related accessories, connectors, etc. It is widely used in many industries such as lifting, transportation, construction, electricity, mining, marine engineering, etc. It is a vital mechanical transmission and support tool. Wire Rope Assembly has excellent properties such as high strength, corrosion resistance, and wear resistance. It shows excellent stability and safety when working under high loads and harsh environments.

1. Composition of wire rope assembly

Wire rope assembly usually consists of the following key parts:

(1) Wire Rope

Wire rope is the core part of wire rope assembly, usually made of multiple strands of high-strength steel wire. The main characteristics of wire rope include:

Material: Wire rope is often made of carbon steel, stainless steel, galvanized steel and other materials, with good corrosion resistance and wear resistance.

Structure: The structure of wire rope can be divided into different types, such as 6x19. 6x37. 7x19. etc., where "6" and "7" represent the number of strands, and the following numbers represent the number of steel wires per strand. Different structures determine the flexibility, load-bearing capacity and tensile strength of wire rope.

Core type: The core of wire rope usually has two types: wire rope core (IWRC) and fiber core (FC). Wire rope core has higher load-bearing capacity and compression resistance, while fiber core provides better flexibility and elasticity.

(2) End Fittings

End fittings are usually required at both ends of the wire rope to connect with other mechanical parts. Common end fittings include:

Eye Fitting: used to connect hooks, hooks, etc.

Shackle Fitting: used to connect with lifting equipment to enhance safety.

Swaged End Fitting: connects the wire rope to metal accessories by crimping to provide higher stability.

Threaded End Fitting: suitable for occasions where threaded connection is required, easy to install and remove.

(3) Connection components

Depending on the application, the wire rope assembly may require other connection components, such as:

Hook: used for hanging and lifting heavy objects.

Fasteners: used to fix and adjust the tightness of the wire rope.

Clamp: used to strengthen the connection between the wire rope and the end fittings.

Pulley: In complex lifting systems, pulleys can reduce friction and improve work efficiency.

(4) Lubricant

In order to extend the service life of wire ropes, wire ropes are usually coated with lubricants. This lubricant can reduce friction, prevent rust, and enhance the wear resistance of wire ropes.

2. Advantages of wire rope assemblies

Wire rope assemblies are widely used not only because of their excellent mechanical properties, but also because of their many advantages, including:

(1) High strength bearing capacity

Wire rope assemblies can withstand very high tension and are suitable for occasions requiring large loads. For example, wire ropes in equipment such as cranes and hoists can carry several tons or even dozens of tons of weight, ensuring that the equipment can operate stably.

(2) Corrosion and high temperature resistance

Especially when stainless steel or galvanized wire ropes are used, the assembly has very strong corrosion resistance and can adapt to harsh environmental conditions such as humidity, high temperature, and chemical corrosion. Wire rope assemblies are often used in marine engineering, mining, oil exploration and other industries.

(3) Good flexibility and elasticity

Through the design of wire ropes with different structures, wire rope assemblies have good flexibility and adjustability, and can adapt to a variety of complex working environments. For example, the multi-strand twisted structure of the wire rope enables it to work flexibly in complex lifting and transportation systems.

(4) Long life and low maintenance cost

Since the wire rope is made of wear-resistant and corrosion-resistant materials, its service life is very long and it can withstand multiple high-load operations without being easily damaged. At the same time, proper lubrication and regular inspections can greatly reduce maintenance costs.

(5) High safety

The design and manufacture of the wire rope assembly is strictly in accordance with international standards, which can ensure that no dangerous situations such as breakage will occur under high loads. In addition, the service life and performance of the wire rope can be guaranteed through regular inspection and maintenance to ensure that there will be no sudden failures during use.

3. Application fields of wire rope assemblies

Due to their excellent performance, wire rope assemblies are widely used in the following fields:

(1) Lifting and hoisting

Wire rope assemblies play a vital role in equipment such as cranes, hoists, and elevators. They are used to carry and hoist heavy objects and are widely used in industries such as construction, ports, warehousing, and mining.

(2) Aviation and aerospace

Wire rope assemblies are also used in the aerospace field, especially in tasks such as lifting spacecraft and towing ships, where wire ropes need to have high strength and durability.

(3) Construction and civil engineering

In construction projects, wire rope assemblies are often used to lift building materials such as concrete and steel structures. Their high load capacity and reliability make them widely used in high-rise building construction and large-scale infrastructure projects.

(4) Mining and oil industry

Wire rope assemblies are widely used in mining and oil drilling. They play an important role in lifting equipment, hoists, conveying systems, etc., and can provide reliable performance in harsh environments.

(5) Power and Electrical

In the power industry, wire rope assemblies are mainly used for the installation and maintenance of power towers, as well as the lifting and transportation of various high-altitude operations. They can cope with high-intensity tension and adapt to high-altitude working environments.

(6) Shipbuilding and Marine Engineering

In marine engineering, wire rope assemblies are widely used in operations such as lifting, traction and anchoring of ships. Due to their corrosion resistance, wire rope assemblies can operate stably for a long time in marine environments.

4. Customization and manufacturing of wire rope assemblies

Depending on different application requirements, wire rope assemblies can be customized according to the specific requirements of customers. Customization includes:

Wire rope type and structure: Choose wire ropes of different structures (such as 6x19. 7x19. etc.), and different materials (such as carbon steel, stainless steel).

Terminal accessories customization: Customize different terminal accessories such as ring connectors, hook connectors, crimp connectors, etc. according to the connection method and working conditions.

Length and diameter: Customize the length and diameter of the wire rope according to the actual use occasion to ensure the best load capacity and ease of use.

Lubrication and anti-corrosion treatment: According to the use environment, select appropriate lubricants and anti-corrosion coatings (such as galvanizing, stainless steel coating) to extend the service life of the wire rope assembly.
